099 4010 - Equipment for brake pad linings rivets DIN 7338



Type B with drilled shaft
Material C-Cu

Price list
Pack of 25 pieces

Pricing
unpacked EXW Heiden

01/01/09

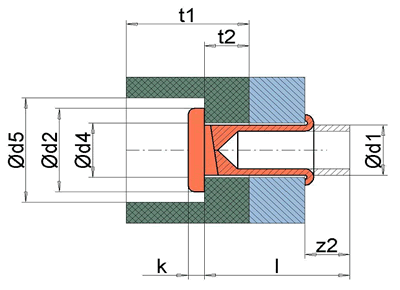

d1 h13 34568
d2 j15 5,57,5

9,5

11,5

15,5

d4 H12

3)

3,1

4,2

5,2

6,2

8,2

d5 H14



6,5

8,5

10,5

12,5

16,5

k



0,8

1,0

1,0

1,2

1,2

z2

1)

2,0

2,0

2,5

3,0

4,0

2)

--

--

--

3,5

4,5

t1 Thickness of brakelining
t23)Restof the starch of brakelining
woven,flexibletextile brankelinings0,2 x t1, min. 2 mm
rolled,flexible bandware 0,3 x t1, min. 3 mm
pressed,hardmoldings0,2 x t1, min. 2 mm

Ød1



3

4

5

6

8

Lenght l

 Prices in EUR / Pack of ( 25 pieces)

5













6



1,69

2,32







8



1,86

2,40

3,66





10

2,10

2,80



5,76



12 2,323,304,186,0010,7
15  4,934,347,1611,45
18   5,398,4512,90
20  5,606,9310,4113,30
22   7,4911,8514,25
25     20,85
28
30     22,15
32
35     26,70



in stock

Quantity discount
decrease in each dimension

from 100 St10%
from 250 St12%
from 500 St15%
from 1000 St      20%


Other dimensions on request. Subject to prior sale.



1) Lenght l = 5 bis 20 mm
2) Lenght l = 22 bis 40 mm
3) The informations ​​are approximate values.
